Before you enter data

The National Diagnostic Reference Level Service MDCT survey collects data for three age groups and eight imaging protocols. The three age groups are:

baby/infant (0-4 years)
child (5-14 years)
adult (15+ years)

The eight protocols are:

Head
Soft-tissue neck
Cervical spine
Chest
Abdomen-pelvis
Kidney-ureter-bladder (KUB)
Chest-abdomen-pelvis (CAP)
Lumbar spine

To start a new survey you select the Age Group, Protocol and CT Scanner used from the drop down lists and then select ‘Start New Survey’.

Screen shot from NDRL Database - 'Start new suvey'

This takes you to the data entry page for the survey you have just created. There are two main sections to this page, the scan settings data and the patient data. Before you can fill in any patient data you must fill in the scan settings data and select ‘Save Settings’.

Screen shot from NDRL Database - 'Settings'

Some settings such as ‘Reconstruction Algorithm Kernel’ and ‘Scan Field of View’ allow you to enter numbers and/or words/symbols, e.g. ‘Standard’ or ‘35 cm’.

The ‘Reconstruction Slice Width’ box allows you to enter multiple widths, e.g. ‘2, 5, 10’.

The comments box is a free field where any additional information can be recorded.

There is an option to print out this data entry page. It may be easier to fill in the patient data table by hand then log back in and enter the data electronically later.

In the patient data entry table, for single and multiple phase scans, the average CTDI_vol, the total DLP, patient weight, patient age and patient sex is required.

Screen shot from NDRL Database - 'Patient Data'

To obtain the patient weight you should just ask them, accuracy to the nearest 5 kg is sufficient.

It is easiest to enter the patient data across each row rather than down each column.

Each time you select ‘Save’ or ‘Save and Close’ the patient data you have entered will become locked and you will not be able to edit it.

The ‘Show Scattergram’ button will only become active once you have saved data for at least one patient. By selecting ‘Show Scattergram’ you will be able to view a graph showing DLP vs patient number.

The ‘Submit Survey’ button will only become active once you have entered data for at least 10 patients and saved the data.

Caution: Do not select the ‘Submit Survey’ button until you are sure that you wish to submit the data. Once you submit the data the survey will become locked and you will not be able to add any additional data. A warning message will appear to ask you if you are sure you wish to submit the data.

Like all parts of the service, the webpage will time out after 10 minutes of no activity, when this happens you will have to log back in to continue.

Protocol specifications

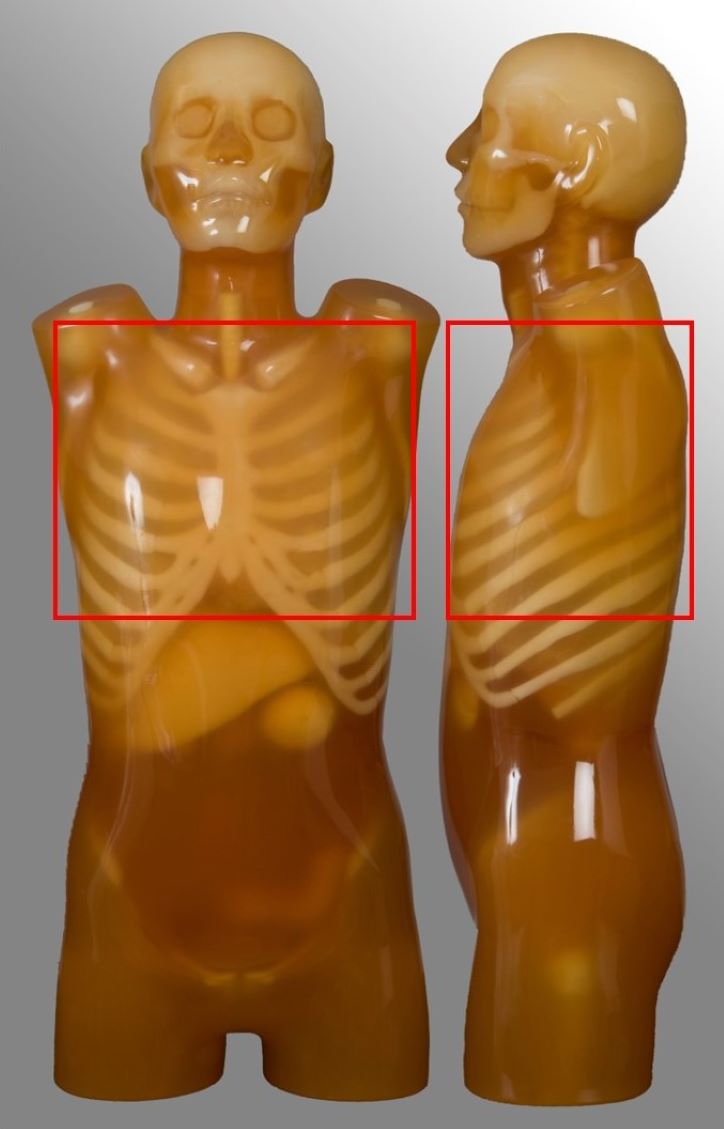

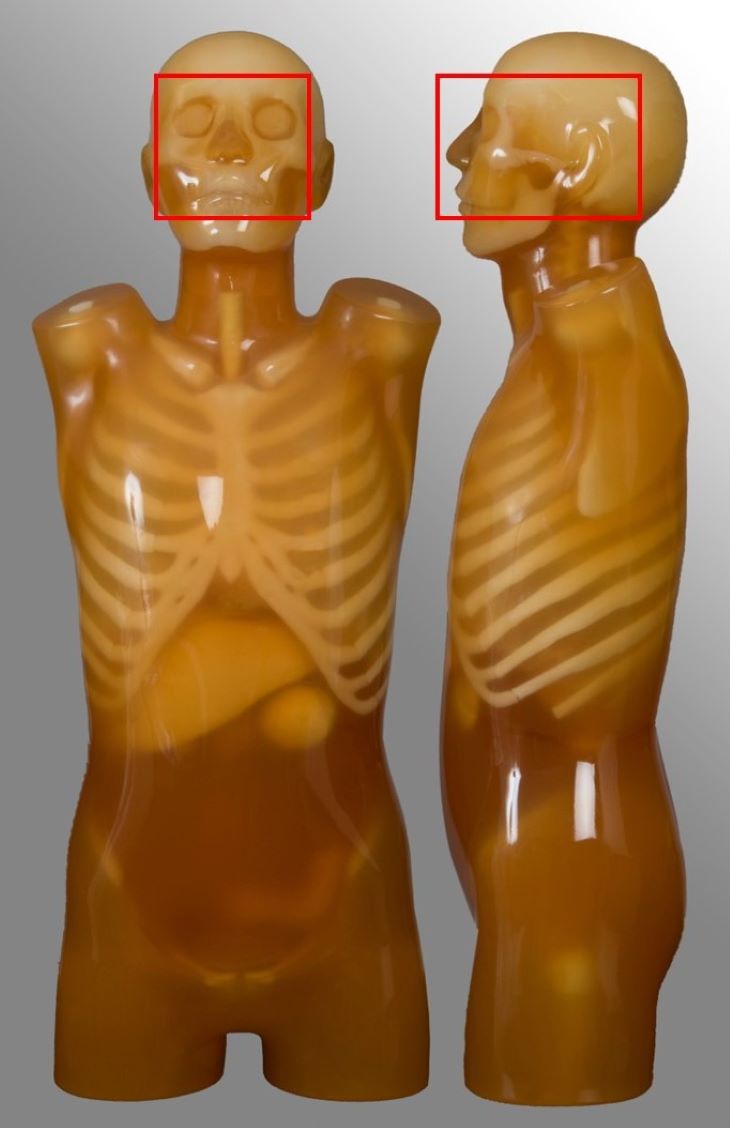

Below are images and descriptors of various MDCT scan protocols. Scan region approximates to the region marked with red lines on the respective image.
